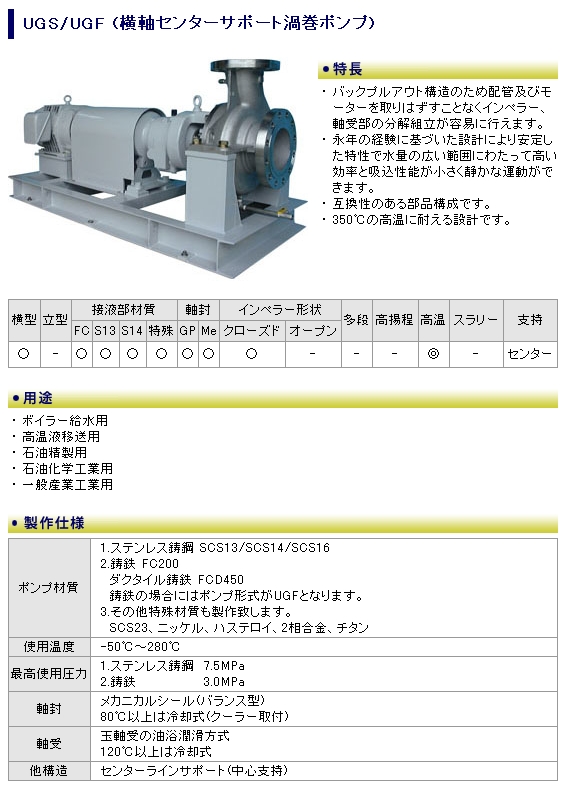

本多机工株式会社HONDA KOKI.CO.LTD。成立于1951年，产品有系列HONDA PUMP,水泵，涡卷泵，喷射泵等系列产品。
型号:UGS/UGF,应用于锅炉给水,高温液体运输, 石油炼制,石油化工行业及一般工业. |
|
|
| 质材 |
1 |
Stainless Steel SCS13/SCS14/SCS16. |
|
| 2 |
Cast Iron FC200. |
|
| Ductile Iron FCD450 (For HC Series Pumps). |
|
| For cast-iron material the pump model is UGF. |
|
| 3 |
Other specific materials. |
|
| SCS23, Nickel Alloy, Hastelloy, Duplex Stainless Steel, Titanium |
|
| 温度 |
-50oC～280oC |
|
|
| 最大压力 |
1 |
Stainless steel: |
7.5MPa |
| 2 |
Cast Iron: |
3.0MPa |
| 轴封 |
Mechanical seal (Balance type). |
|
|
| When pumping temperature exceeds 80oC, cooler shall be provided. |
|
|
| 轴承 |
Ball bearing (Oil bath system). |
|
|
| Water jacketed bearing housing is available when temperature exceeds 120oC. |
|
|
| Additional Features |
Center support type. |
|
|
|
