本多机工HONDA PUMPS乳液泵BLS型:卧式，单级全开放式叶轮。介质:ABS和SBR乳胶，乳化液体和碎屑浆。本多机工的粘液泵是本多机工的特有专利产品，享有世界声誉,其能够在粘度范围的750mPa.s?1999mPa下安全使用。
本多粘液泵具有以下特点:预防环境污染 提高生产率 全开式叶轮 叶轮外壳湿润抛光 凝胶和液体乳胶（凝固）因堵塞，无泄漏。低维护成本。过度凝胶的比例，低的1 /30一般离心泵，保持了乳胶的质量.

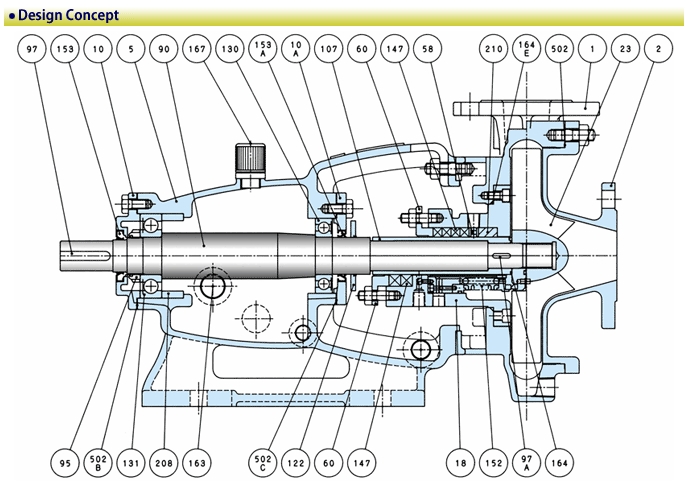

| Item |
Designation |
Stainless Steel |
| 1 |
Casing |
SCS13 |
SCS14 |
| 2 |
Suction Cover |
SCS13 |
SCS14 |
| 5 |
Bracket |
FC200 |
FC200 |
| 10 |
Bearing Cover |
FC200 |
FC200 |
| 10A |
Bearing Cover |
FC200 |
FC200 |
| 18 |
Seal Case |
SCS13 |
SCS14 |
| 23 |
Impeller |
SCS13 |
SCS14 |
| 58 |
Lantern Ring |
SUS304 |
SUS316 |
| 60 |
Gland Cover |
SUS304 |
SUS316 |
| 90 |
Shaft |
SUS304 |
SUS316 |
| 95 |
Bearing Nut |
S45C |
S45C |
| 97 |
Key (Coupling Side) |
S45C |
S45C |
| 97A |
Key (Impeller Side) |
SUS304 |
SUS316 |
| 107 |
Shaft Sleeve |
SUS304 |
SUS316 |
| 122 |
Deflector |
IIR |
IIR |
| 130 |
Ball Bearing |
SUJ |
SUJ |
| 131 |
Ball Bearing |
SUJ |
SUJ |
| 147 |
Gland Packing |
|
Wide choice of materials available. |
| 152 |
Mechanical Seal |
|
|
| 153 |
Oil Seal |
NBR |
NBR |
| 153A |
Oil Seal |
NBR |
NBR |
| 163 |
Oil Gauge |
YBsC+Glass |
YBsC+Glass |
| 164 |
O-Ring |
|
Wide choice of materials available. |
| 164E |
O-Ring |
|
|
| 167 |
Oil Cap |
Acryl |
Acryl |
| 208 |
Bearing Collar |
S45C |
S45C |
| 210 |
Bushing |
PTFE |
PTFE |
| 502 |
Gasket |
|
Wide choice of materials available. |
| 502B |
Gasket |
Three Sheet |
Three Sheet |
| 502C |
Gasket |
Three Sheet |
Three Sheet |
|
