本多机工HONDA PUMPS低横轴涡卷泵LNPS/LNPF,是性价很高的一款泵,主要应用范围：真空蒸发器，结晶器，液化气转移，锅炉给水，冷凝排水，化学反应器，海水淡化厂...

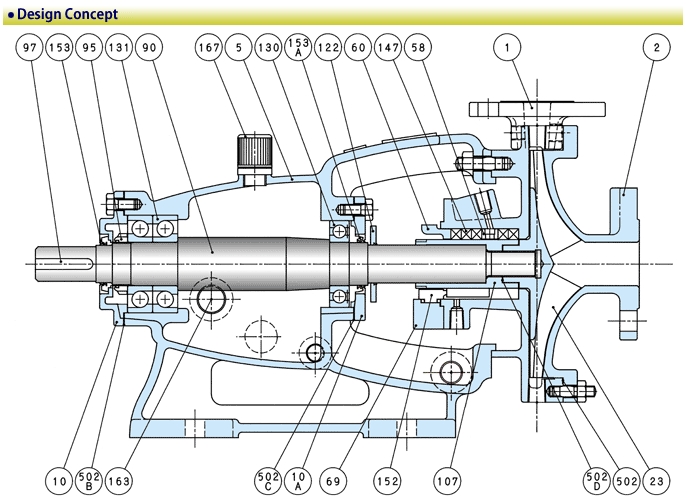

| Item |
Designation |
Stainless Steel |
Cast Iron |
| 1 |
Casing |
SCS13 |
SCS14 |
FC200 |
| 2 |
Suction Cover |
SCS13 |
SCS14 |
FC200 |
| 5 |
Bracket |
FC200 |
FC200 |
FC200 |
| 10 |
Bearing Cover |
FC200 |
FC200 |
FC200 |
| 10A |
Bearing Cover |
FC200 |
FC200 |
FC200 |
| 23 |
Impeller |
SCS13 |
SCS14 |
SCS13 |
| 58 |
Lantern Ring |
SUS304 |
SUS316 |
SUS304 |
| 60 |
Gland Cover |
SCS13 |
SCS14 |
FC200 |
| 69 |
Seal Cover |
SUS304 |
SUS316 |
SUS304 |
| 90 |
Shaft |
SUS304 |
SUS316 |
S45C |
| 95 |
Bearing Nut |
S45C |
S45C |
S45C |
| 97 |
Key (Coupling Side) |
S45C |
S45C |
S45C |
| 107 |
Shaft Sleeve |
SUS304 |
SUS316 |
SUS304 |
| 122 |
Deflector |
IIR |
IIR |
IIR |
| 130 |
Ball Bearing |
SUJ |
SUJ |
SUJ |
| 131 |
Ball Bearing |
SUJ |
SUJ |
SUJ |
| 147 |
Gland Packing |
|
Wide choice of materials available. |
|
| 152 |
Mechanical Seal |
|
|
|
| 153 |
Oil Seal |
NBR |
NBR |
NBR |
| 153A |
Oil Seal |
NBR |
NBR |
NBR |
| 163 |
Oil Gauge |
YBsC+Glass |
YBsC+Glass |
YBsC+Glass |
| 167 |
Oil Cap |
Acryl |
Acryl |
Acryl |
| 502 |
Gasket (Casing) |
|
Wide choice of materials available. |
|
| 502B |
Gasket (Bearing Cover) |
Three Sheet |
Three Sheet |
Three Sheet |
| 502C |
Gasket (Bearing Cover) |
Three Sheet |
Three Sheet |
Three Sheet |
| 502D |
Gasket (Sleeve) |
|
Wide choice of materials available. |
|
|
