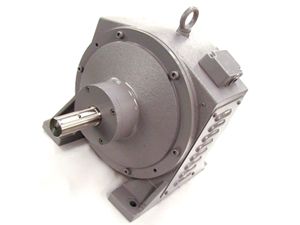

| MERITS: |
| 1.Compact and easy centering adjustment. |
| 2.High frequent operation. |
| 3.Quick action and no running friction. |
| 4.Low maintenance cost. |
| 5.Assembled 7 models from CB-30 to CB-120 |
| Specification and dimension. Please refer to us. |
|
| SPECIFICATION and DIMENSION |
|
model No.
|
Torque
Nm * |
Voltage
DC V * |
Current
mA * |
Weight
kg |
Applicable motor
kw |
Dimension
|
||||
|
C
|
H
|
L
|
M
|
S
|
||||||
| CB-30 |
7
|
90
|
100
|
7
|
0.2-0.4
|
63
|
154
|
270
|
130
|
12
|
| CB-40 |
20
|
90
|
110
|
16
|
0.4-0.75
|
90
|
209
|
340
|
180
|
19
|
| CB-50 |
40
|
90
|
190
|
22
|
1.5-2.2
|
102
|
227
|
380
|
200
|
24
|
| CB-60 |
60
|
90
|
210
|
35
|
3.7
|
132
|
282
|
440
|
256
|
28
|
| CB-80 |
150
|
90
|
310
|
61
|
5.5-7.5
|
160
|
334
|
516
|
306
|
32
|
| CB-100 |
280
|
90
|
430
|
102
|
11-15
|
180
|
377
|
628
|
360
|
42
|
| CB-120 |
550
|
90
|
660
|
160
|
30
|
205
|
420
|
680
|
420
|
48
|
| Note; Muximum safety speed ; 1800 r/m * marked : Same value for clutch and brake. Current ; Shows the value at 20 degC |
|

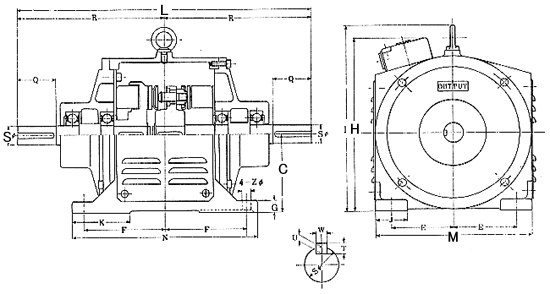

| Illustration. |
 |
|
| Please specify followings on your order. |
| 1. | Brake name. Type and model No. | ||
| 2. | Brake torque. |
Nm
|
|
| 3. | Diameter of shaft hole. |
φ
|
|
| 4. | Input voltage. |
(of power unit) AC/DC
|
V
|
| 5. | Power source unit. |
Model No.
|
V
|
| 6. | Former mfg.No. (for replacement) | No. (for replacement) | |
| 7. | Special spec. | ||
| 8. | Reqired pieces and delivery date |
Piece.
|
Date. |
| 9. | Your name and company name. |
|
|
| 10. | Your correspondence No. | Tel/Fax/E-mail： | |
